America RegO 3127G 3129G T3131G LPG Brass Safety Valves
Brand: RegO (USA)
Model: 3127G / 3129G / T3131G
Material: Brass
Connection size: ½”
Connection form: Threaded
Applicable media: LNG
Applications: Containers, gas tanks, cryogenic equipments
Description
Features of RegO 3127G / 3129G / T3131G Brass Safety Valve:
The RegO relief valve is simple to install and functions as a load spring relief valve. External open pressure relief valves for containers and gas depots.
Designed for use as a supplementary relief valve on small ASME above ground and underground containers. They may also be used as a primary or secondary relief device on DOT cylinders, or as hydrostatic relief valves. All working components of these relief valves are outside the container connection, so the valves must be protected from physical damage.
Features:
• “Pop-action” design keeps product loss at a minimum.
• Relief valve designed to automatically reset firmly after discharge.
• Resilient seat disc provides a “bubble-tight” seal.
Technical Specifications of RegO 3127G / 3129G / T3131G Brass Safety Valve:
| 型号 | 开始排放时设定压力MPa | 流量Nm3/小时（空气）UL(在120%时设定压力) | 容器接口M.NPT | 保护盖编号 | 可选配件 (外管接头) |
|---|---|---|---|---|---|
| 3127G | 1.72 | 8.3 | 1/4" | 7545-40 | -- |
| 3129G | 13.2 | 1/2" | 3129接口1/2”F.NPT螺纹 | ||
| T3131G | 2060 | 3/4" | 3131-40 | -- |

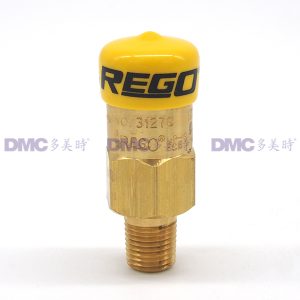

Model: 3127G
RegO 3127G Brass Safety Valves
Brand: RegO
Model: 3127G
Material: Brass
Set Pressure at Start to Discharge (MPa): 1.72
Flow Rate (Air) Nm³/h UL (at 120% of set pressure): 8.3
Container Connection M.NPT: 1/4"
Protective Cap Part Number: 7545-40
Connection Type: Threaded
Applicable Media: Natural Gas (LNG)
Application: Storage containers, gas supply systems, cryogenic equipment
Model: 3129G
RegO 3129G Brass Safety Valves
Brand: RegO
Model: 3129G
Material: Brass
Set Pressure at Start to Discharge (MPa): 1.72
Flow Rate (Air) Nm³/h UL (at 120% of set pressure): 13.2
Container Connection M.NPT: 1/2"
Protective Cap Part Number: 7545-40
Optional accessories: External pipe connector - 3129 interface 1/2" F.NPT thread
Connection Type: Threaded
Applicable Media: Natural Gas (LNG)
Application: Storage containers, gas supply systems, cryogenic equipment

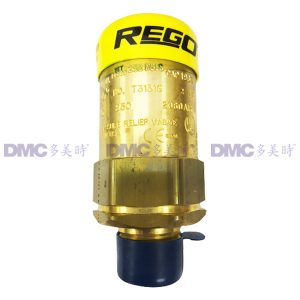

Model: T3131G
RegO T3131G Brass Safety Valves
Brand: RegO (USA)
Model: T3131G
Material: Brass
Set Pressure at Start to Discharge (MPa): 1.72
Flow Capacity (Air) Nm³/h UL (at 120% of set pressure): 2060
Container Connection M.NPT: 3/4"
Protective Cap Part Number: 3131-40
Connection Type: Threaded
Applicable Media: Natural Gas (LNG)
Application: Storage containers, gas supply systems, cryogenic equipment
