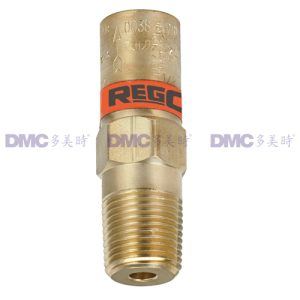

America RegO PRV Series Cryogenic Gas Safety Valves
Brand: RegO
Model Numbers: PRV9432 / PRV9433 / PRV9434 / PRV19430 / PRV29430
Materials: Brass / Stainless Steel
Connection Sizes: 1/4″, 3/8″, 1/2″
Connection Type: Threaded
Applicable Media: Oxygen and other industrial cryogenic gases
Applications: Cylinders, small cryogenic tanks, and other cryogenic equipment
Description
Features of RegO PRV Series Cryogenic Gas Safety Valves:
- Cleaned and packaged to meet CGA G-4.1 requirements for liquid oxygen service
- Bubble-tight seal at 95% of set pressure
- 100% factory tested
- Excellent repeatability
- Operating temperature range: -196°C to +74°C / -320°F to +165°F
- Full lift and discharge at 110% of set pressure (models PRV19430 & PRV29430)
- Unique anti-vibration adjustment screw (models PRV19430 & PRV29430)
Discharge Port Options (PRV9432):
* Safety valves without outlet tubing generally leave the discharge port information blank in the part number.
* “P” indicates a safety valve with no discharge port (e.g., PRV9432TP350).
* Discharge tube option: “P” indicates a connected discharge tube with no discharge port (e.g., PRV9432TP350P).
* If left blank, it means the safety valve has no discharge tube (e.g., PRV9432T350).
Discharge Port Options (PRV9434):
* Same as above: blank indicates no discharge port;
* “P” = with discharge tube, no discharge port (e.g., PRV9434TP350P);
* Blank = no discharge tube (e.g., PRV9434T350).
Technical Specifications for RegO PRV Series Cryogenic Gas Safety Valves:
| 型号 | 入口 | 阀体和阀门材料 | 压力设定 | 排气孔尺寸 | 引出管部件号 | 引出管口径 |
|---|---|---|---|---|---|---|
| PRV9432 | 1/4" | 黄铜 | 17-600psig | 0.062" | B-9412-2 | 3/8"F.NPT |
| PRV9433 | 3/8" | |||||
| PRV9434 | 1/2" | 1/2"F.NPT | ||||
| PRV19432 | 1/4" | 15-600psig | -- | -- | ||
| PRV19433 | 3/8" | -- | -- | |||
| PRV19434 | 1/2" | -- | -- | |||
| PRV29432 | 1/4" | 不锈钢 | -- | -- | ||
| PRV29433 | 3/8" | -- | -- | |||
| PRV29434 | 1/2" | -- | -- |
Model: PRV9432

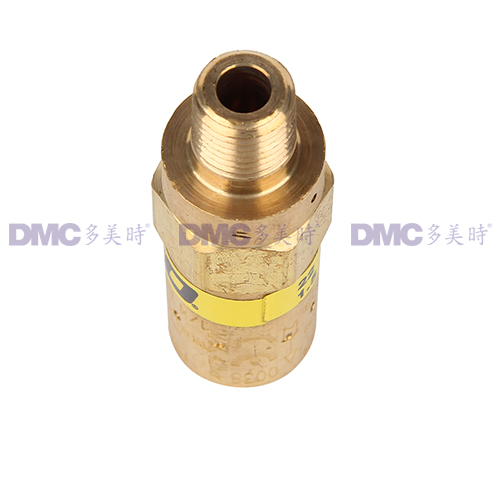

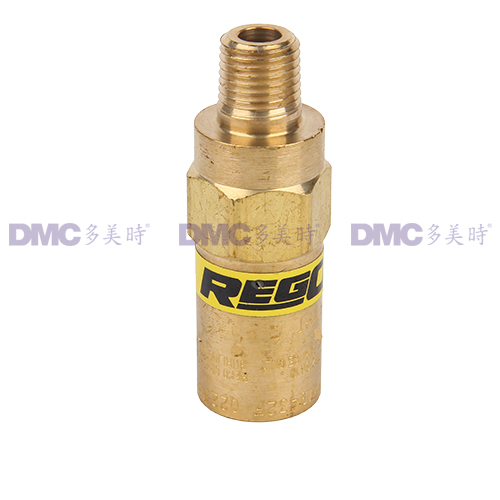

RegO PRV9432 Brass Safety Valves
Brand: RegO (USA)
Model: PRV9432
Material: Brass
Inlet Size: 1/4"
Set Pressure Range: 17~600 psig
Discharge Orifice Size: 0.062"
Discharge Tube Part Number: B-9412-2
Discharge Tube Connection Size: 3/8" F.NPT
Connection Type: Threaded
Applicable Media: Cryogenic gases
Application: Cylinders and other cryogenic equipment
America RegO PRV9433 Cryogenic Gas Safety Valves

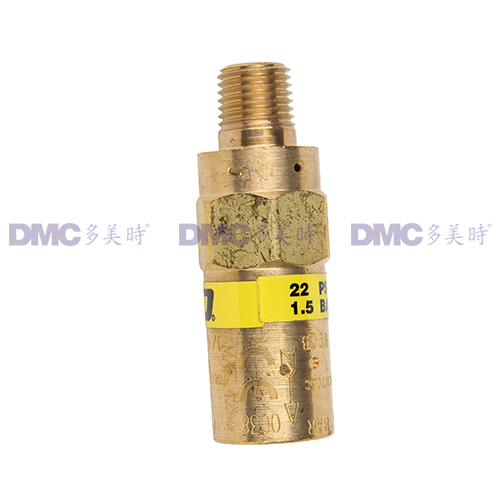

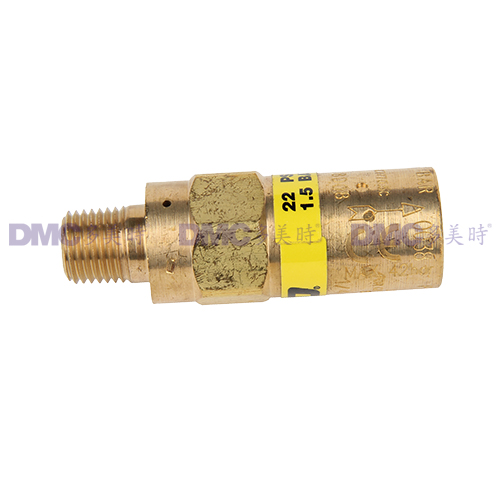

RegO PRV9433 Brass Relief valve
Brand: RegO (USA)
Model: PRV9433
Material: Brass
Inlet Size: 3/8"
Set Pressure Range: 17~600 psig
Discharge Orifice Size: 0.062"
Discharge Tube Part Number: B-9412-2
Discharge Tube Connection Size: 3/8" F.NPT
Connection Type: Threaded
Applicable Media: Cryogenic gases
Application: Cylinders and other cryogenic equipment
Model: PRV9434

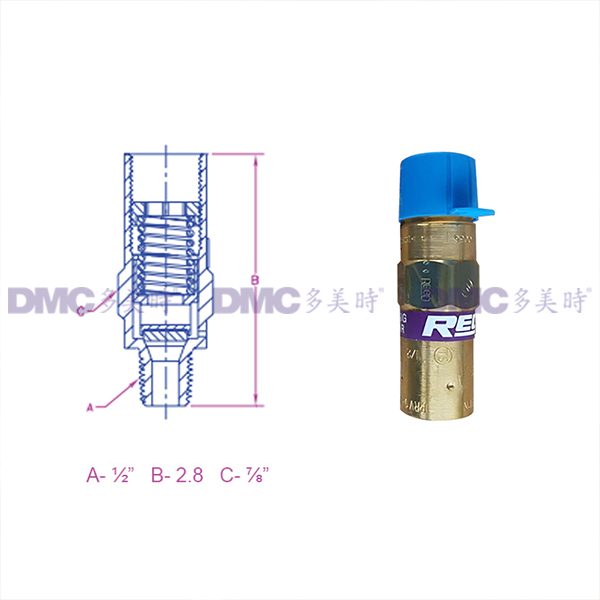

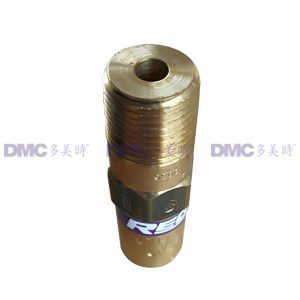

America RegO PRV9434 Cryogenic Gas Safety Valves
Brand: RegO (USA)
Model: PRV9434
Material: Brass, Stainless Steel
Inlet Size: 3/8"
Set Pressure Range: 17~600 psig
Discharge Orifice Size: 0.062"
Discharge Tube Part Number: B-9412-2
Discharge Tube Connection Size: 1/2" F.NPT
Connection Type: Threaded
Applicable Media: Cryogenic gases
Application: cryogenic liquid storage tanks, Dewar flasks, etc.
Discharge Port Options (PRV9434):
* Safety valves without outlet tubing generally leave the discharge port information blank in the part number.
* "P" indicates a safety valve with no discharge port (e.g., PRV9434TP350).
* "P" = with discharge tube, no discharge port (e.g., PRV9434TP350P);
* Blank = no discharge tube (e.g., PRV9434T350).
Model: PRV19430 Series
America RegO PRV Series Cryogenic Gas Safety Valves
Brand: RegO
Model: PRV19430 (PRV19432 / PRV19433 / PRV19434)
Material: Brass
Connection Sizes: 1/4", 3/8", 1/2"
Connection Type: Threaded
Applicable Media: Oxygen and other industrial cryogenic gases
Application: Small cryogenic storage tanks
ASME Safety Valves for Gas and Cryogenic Systems
PRV19430 Series: Brass Safety Valves
PRV29430 Series: Stainless Steel Safety Valves

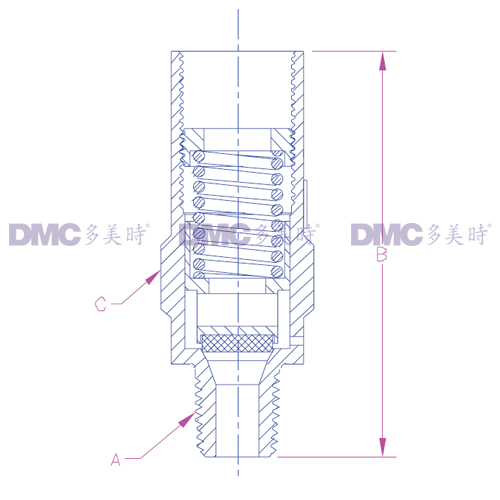

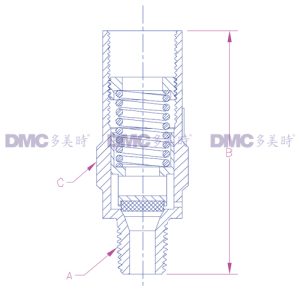

| 型号 | 入口 (A) | 高度 (B) | 六角尺寸 (C) | 排气孔尺寸 |
|---|---|---|---|---|
| PRV19432 和 PRV29432 | 1/4" | 2.6" | 7/8" | .062sq.inch(平方英寸) |
| PRV19433 和 PRV29433 | 3/8" | |||
| PRV19434 和 PRV29434 | 1/2" | 2.8" |
Applications
These safety valves are designed for use with oxygen and other industrial gases, including cryogenic applications.
They are suitable for gas distribution systems, liquid cylinders, or small cryogenic storage tanks requiring ASME-certified safety valves.
Features:
- ASME rated and certified by the National Board.
- Bubble-tight seal at 95% of set pressure.
- Excellent repeatability.
- Full opening and discharge at 110% of set pressure.
- Unique anti-vibration adjusting screw.
- 100% factory tested.
- Operating temperature range: -320°F to +165°F.
- Cleaned and packaged per CGA G-4.1 for oxygen service.
Materials
Spring: Stainless Steel
Body, internal components, and seat: See part numbers below
Flow Performance
PRV19430 and PRV29430 Series: 0.783 SCFM air per psia over set pressure
ASME flow pressure is 10% above the set pressure
Material and Inlet Part Numbers
| 型号 | 入口 | 材料 |
|---|---|---|
| 19432 | 黄铜 | 1/4" |
| 19433 | 黄铜 | 3/8" |
| 19434 | 黄铜 | 1/2" |
Seat Materials
F = Fluorosilicone (for set pressures 90–139 PSIG)
T = PTFE (for set pressures 140–600 PSIG)
Vent Options
Leave blank = with vent (standard for cryogenic applications)
Add "P" = without vent
Set Pressure Range
90 to 600 PSIG
Model: PRV29430 Series
America RegO PRV29430 Series Cryogenic Gas Safety Valves
Brand: RegO (USA)
Model: PRV29430 (PRV29432 / PRV29433 / PRV29434)
Material: Stainless Steel
Connection Sizes: 1/4"、3/8"、1/2"
Connection Type: Threaded
Applicable Media: Oxygen and other industrial cryogenic gases
Applications: Small cryogenic tanks
ASME Safety Valves for Gas and Cryogenic Systems
PRV29430 Series: Stainless Steel Safety Valves
| 型号 | 入口 (A) | 高度 (B) | 六角尺寸 (C) | 排气孔尺寸 |
|---|---|---|---|---|
| PRV19432 和 PRV29432 | 1/4" | 2.6" | 7/8" | .062sq.inch(平方英寸) |
| PRV19433 和 PRV29433 | 3/8" | |||
| PRV19434 和 PRV29434 | 1/2" | 2.8" |
Applications
These safety valves are designed for use with oxygen and other industrial gases, including cryogenic applications.
They are suitable for gas distribution systems, liquid cylinders, or small cryogenic storage tanks requiring ASME-certified safety valves.
Features:
- ASME rated and certified by the National Board.
- Bubble-tight seal at 95% of set pressure.
- Excellent repeatability.
- Full opening and discharge at 110% of set pressure.
- Unique anti-vibration adjusting screw.
- 100% factory tested.
- Operating temperature range: -320°F to +165°F.
- Cleaned and packaged per CGA G-4.1 for oxygen service.
Materials
Spring: Stainless Steel
Body, internal components, and seat: See part numbers below
Discharge performance
0.783 SCFM air flow/psia flow pressure.
ASME flow pressure is 10% above set pressure.
Material and Inlet Part Numbers
| 型号 | 入口 | 材料 |
|---|---|---|
| 29432 | 不锈钢 | 1/4" |
| 29433 | 3/8" | |
| 29434 | 1/2" |
Seat Materials
F = Fluorosilicone (for set pressures 90–139 PSIG)
T = PTFE (for set pressures 140–600 PSIG)
Vent Options
Leave blank = with vent (standard for cryogenic applications)
Add "P" = without vent
Set Pressure Range
90 to 600 PSIG
