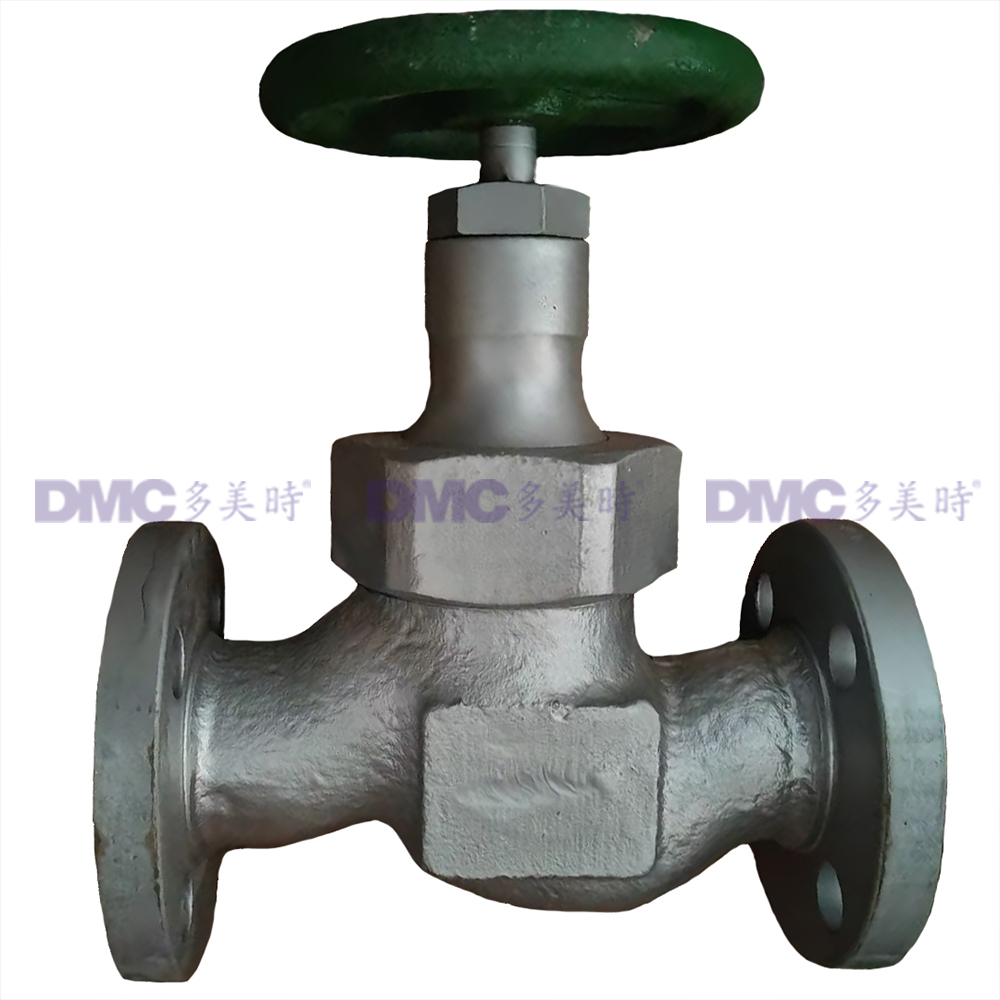

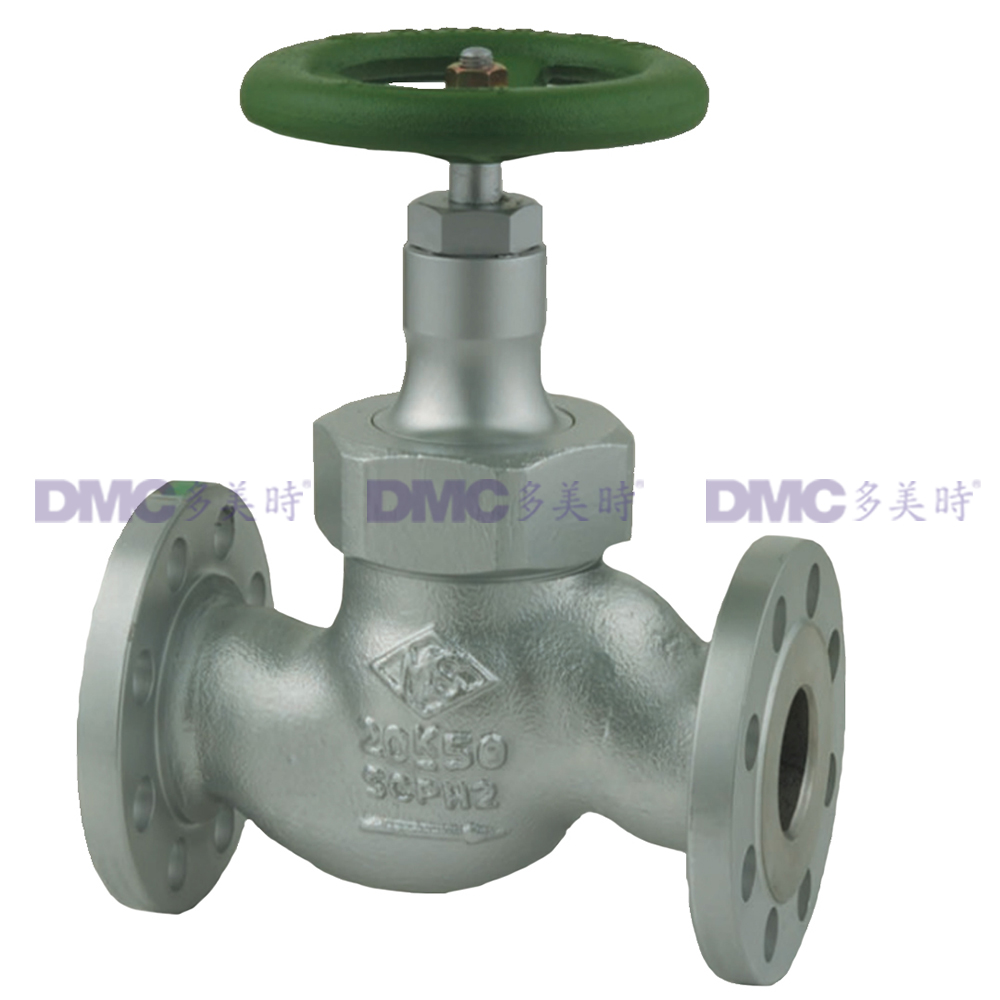

MS Miayiri PV-810B LPG Gas Cast Steel Flange type Globe Valve JIS20K 2.4 MPa
Brand:MS Miayiri
Model: PV-810BHOT
Size:15A～50A,65A/80A,100A~150A,200A
Design Pressure: 2.4 MPa
Design Temperature: -5°C to +70°C
Connection: JIS20K RF
Body Material: SCPH2
Fluid: LPG (liquid and gas)
Application: Designed primarily for use as tank source valves and pipeline valves for LPG (Liquefied Petroleum Gas) systems.
Description
1. Product Name & Application
Product: Cast Steel Flange Globe Valve
Model: PV-810B
Application: Designed primarily for use as tank source valves and pipeline valves for LPG (Liquefied Petroleum Gas) systems.
2. Key Specifications
Fluid: LPG (liquid and gas)
Design Pressure: 2.4 MPa
Design Temperature: -5°C to +70°C
Connection: JIS20K RF
Body Material: SCPH2
Note: This is the standard specification. Confirm actual specifications from your order documents.
3. Important Handling & Installation Notes
Do not lift the valve by its handwheel or subject it to impacts.
Remove the flange guard attached to the flange face before connecting the valve to the piping.
Clean pipe/flange surfaces thoroughly and use a sealant-coated gasket suitable for LPG.
Tighten flange bolts diagonally and evenly.
4. Operation & Maintenance

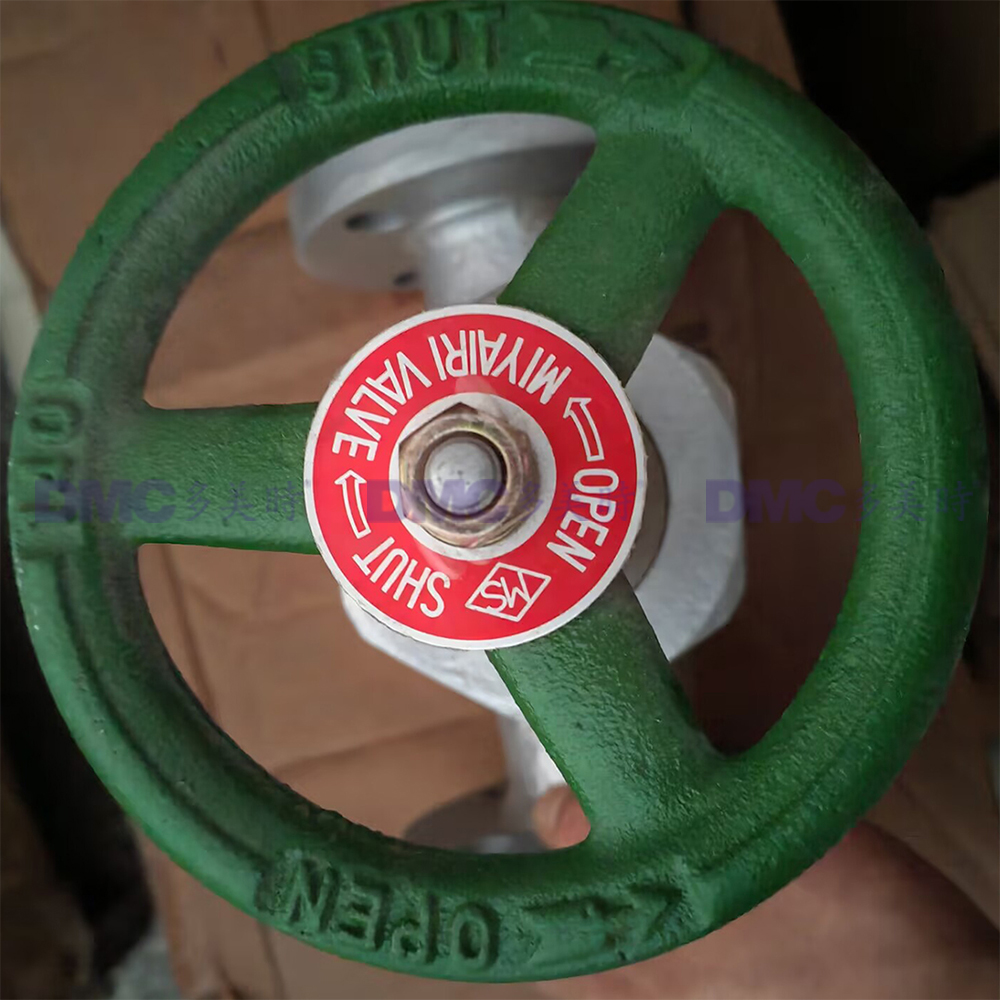

Operation: Turn the handwheel clockwise to close, counter-clockwise to open. Avoid using wrenches or excessive torque.
Maintenance: Regularly check for leaks.
Gland Leak → Replace V-shaped packing.
Bonnet Joint Leak → Replace gasket.
Stiff/Squeaky Operation → Clean, lubricate spindle; if persists, replace V-shaped packing.
5. Disassembly & Reassembly (Summary)
Important: Ensure valve is depressurized before starting.
Key Steps: Follow diagrams. Typically involves removing handwheel, gland nut, internal packing parts (spring, gasket, V-shaped packing, O-ring), bonnet, and seat packing.
Key Reassembly Rules:
Clean all parts.
Replace all seals (gaskets, V-shaped packing, O-rings) with genuine parts. Lightly apply LPG-compatible grease to V-shaped packing and specified gaskets/O-rings.
Do not apply sealant to the main bonnet gasket (“24” for 15A-50A, “27” for 65A/80A, “14” for 100A/150A).
For sizes 65A-150A, apply LPG-compatible (high-load) grease to bonnet/spindle threads.
Assemble with the valve disc in the fully open position.
Union Nut Torque (15A-50A): See values in table (e.g., 15A: 140-180 N·m).
