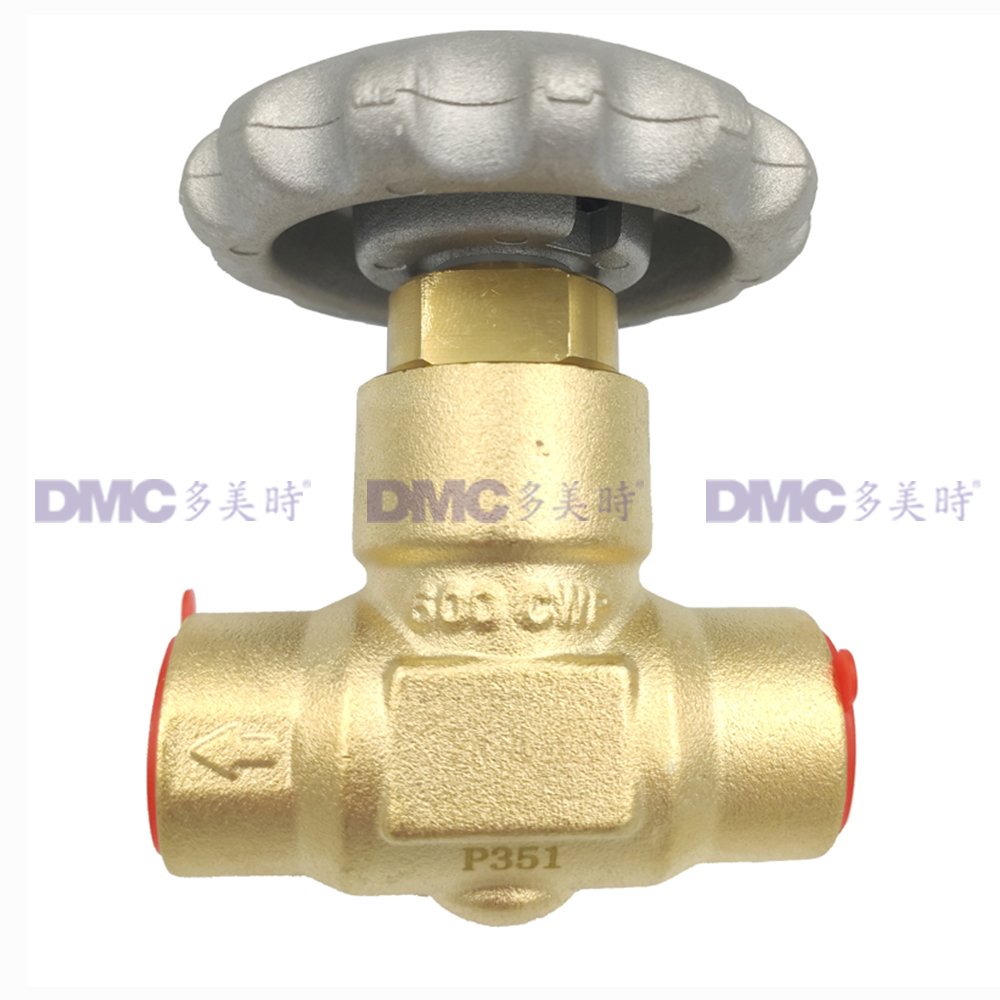

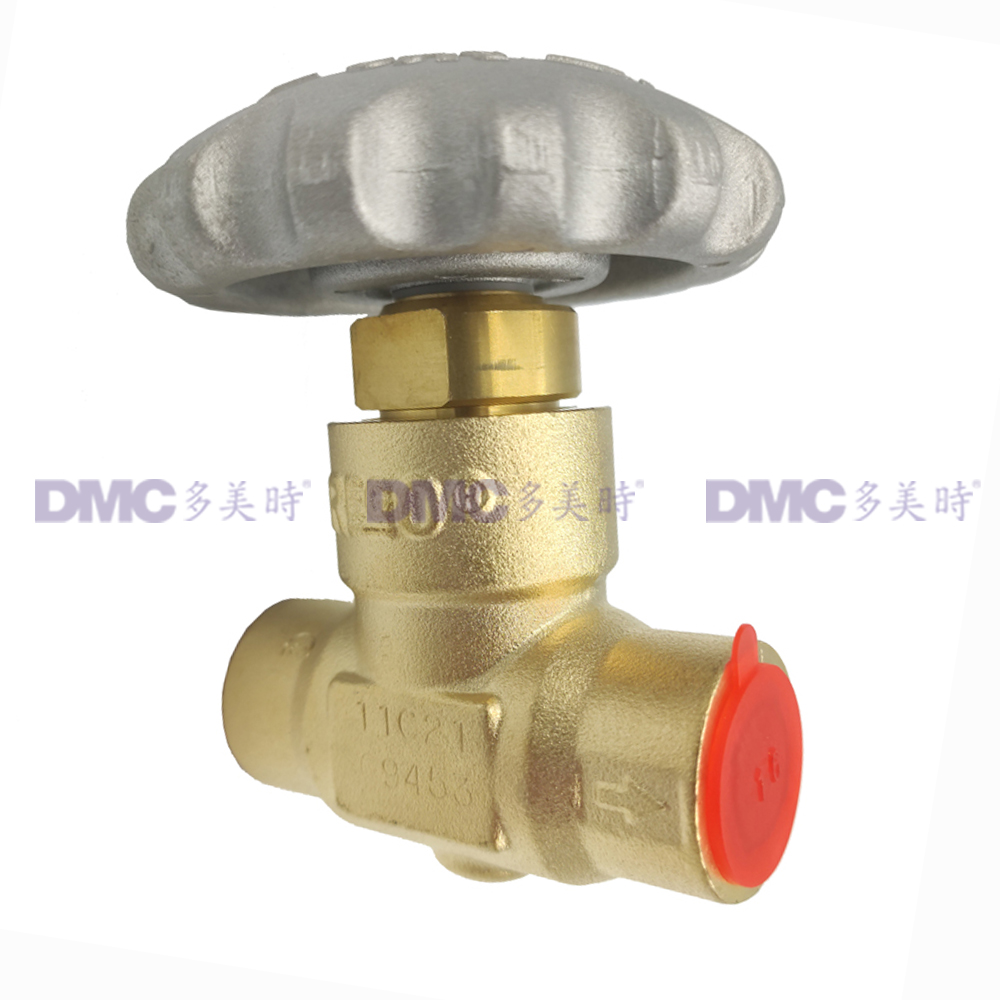

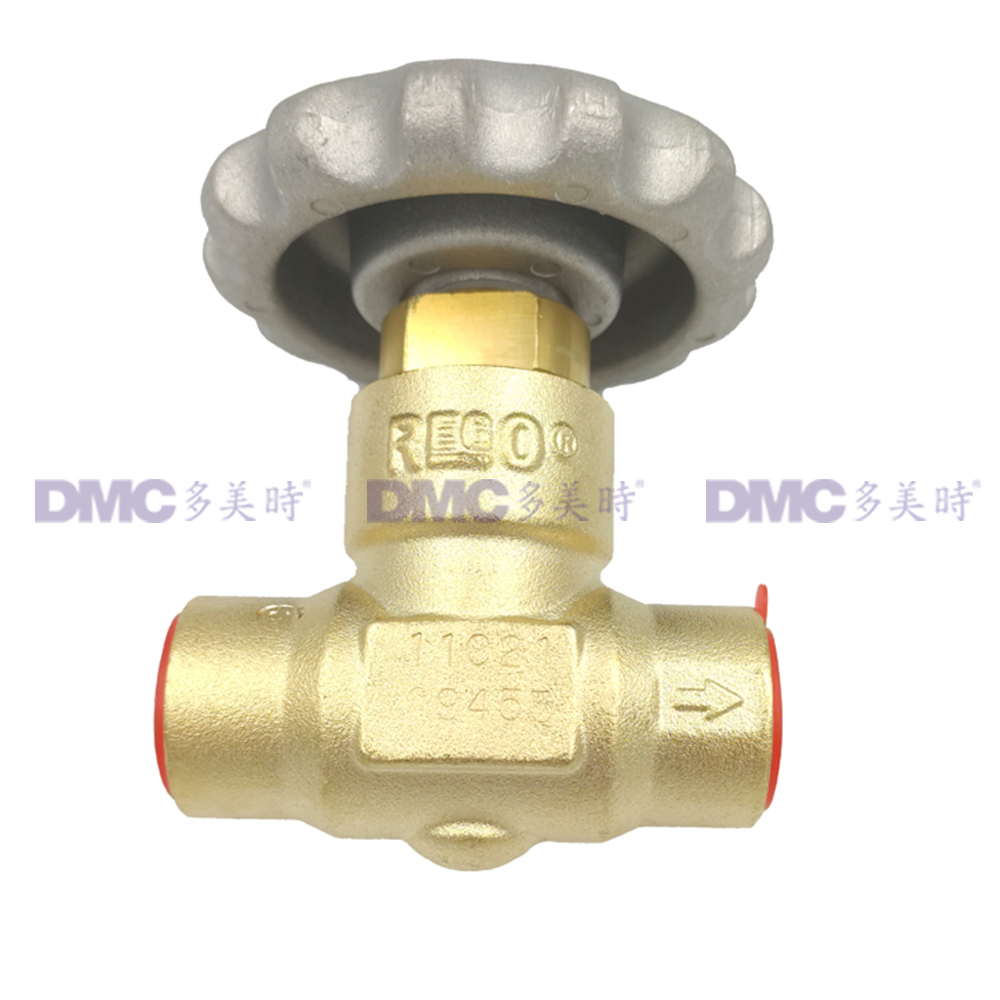

REGO C9453 Low Temperature Steel Cylinder Globe Valve 3/8″ Cryogenic Valves
Brand: REGO
Model: C9453
Connection size: 3/8 “F.NPT x 3/8” F.NPT
Connection method: threaded connection
Valve body material: brass
Working pressure (MAX): 609psi
Working temperature range: -196 ℃~74 ℃
Medium: Low temperature industrial gases (such as oxygen)
Description
Application:
The C9453 valves are designed for use on portable cryogenic cylinders and other in-line shut-off valve applications. Approved for TPED in accordance with EN1626.
Feature:
• Spring loaded stem seal automatically adjusts for any gasket wear, eliminating the need to constantly retighten the packing nut.
• Non-rising stem and low profile allow the valve to fit into tight areas and still provide easy access.
• Unique pressure-sealed moisture barrier helps prevent freeze up at cryogenic temperatures.
• Conical swivel seal design helps prevent seat galling from over torquing.
• Cleaned for liquid oxygen service per CGA G-4.1.
• Maximum working pressure is 609 PSIG. (42 Bar)
• Working temperature range is -320°F to +165°F. (-196ºC to +74ºC)
• 100% Factory Tested
REGO C9453 Low Temperature Steel Cylinder Globe Valve
Brand: REGO
Model: C9453
Connection size: 3/8 "F.NPT x 3/8" F.NPT
Connection method: threaded connection
Valve body material: brass
Working pressure (MAX): 609psi
Working temperature range: -196 ℃~74 ℃
Medium: Low temperature industrial gases (such as oxygen)
